FT 6.0 – 40 (5557)

ural
Tank volume: 5000-8000 L
Chassis: URAL
Drive gear: 6х6
Tank volume, L: 6000
Tank material: structural or stainless steel
All specification

SUBMIT A REQUEST

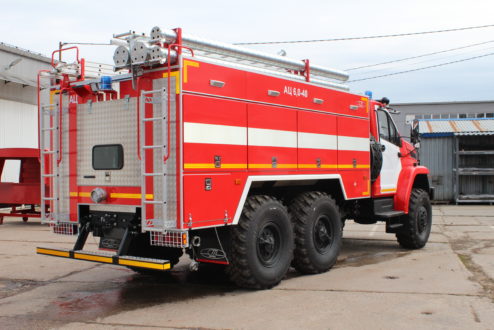

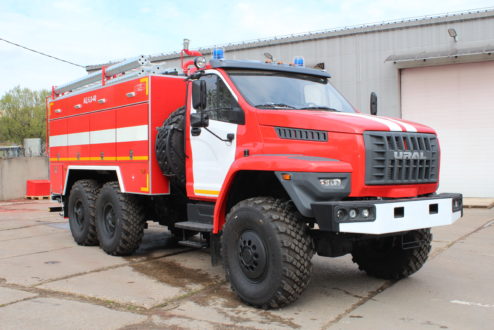

Fire tanker FT 6.0 – 40 (5557)

Fire tanker FT 6.0 – 40 (5557) on the URAL chassis has a wheel formula of 6×6 (all-terrain chassis) and provides movement on roads of all types, as well as delivery of a sufficient volume of extinguishing agents to the place of ignition.

The cabin of a fire tanker truck is all-metal, two-row, four-door, six-seater. The enlarged compartments of the body superstructure allow for rational arrangement of fire-fighting equipment (FFE).

The doors of the compartments for the placement of FFE (at the request of the consumer) have two versions: a “curtain” type (made of anodized aluminum) or a “panel” type with pneumatic springs, which provide convenient access to any point of the compartment.

A fire-fighting single-stage pump of normal pressure of the NCPN-40/100 type is installed on a fire tanker. The operation of the pumping unit is controlled from the rear (pumping) compartment. It is possible to install the pump in the cabin of a tanker truck (“medium” version). The pump compartment and the appliance crew cabin are equipped with a heating system.

Specification

Tank volume:
5000-8000 L
Chassis:
URAL
Drive gear:
6х6
Tank volume, L:
6000
Tank material:
structural or stainless steel
Foaming agent tank volume, L:
360
Foaming agent tank material:
stainless steel / modified polypropylene
Centrifugal fire pump:
НЦПН 40/100 или НЦПК 40/100-4/400
Total weight of the fire truck, kg:
21375
Dimensions (LxWxH), m:
8400х2500х3300
Combat crew, including the driver, pers.:
6
